เกียร์มอเตอร์ (Gear Motor)

เกียร์มอเตอร์ยี่ห้ออื่น ๆ

Gear Motor

• Cornet Series ERK Standard Series

ERK Standard Series

Designed for general purpose motors
Reduction Ratio: 1/11-1/71 (possible in multiple stages)
Motor Capacity: 200W to 37kW
Features
Durable and long-wear
High single-stage reduction ratio
Available in multiple reduction-stages (1-stage, 2-stage, or 3-stage types) and three (3) mounting orientations (horizontal, vertical upward or vertical downward)
Backlash-free model (within 0.1°) is available
Compatible with all general-purpose motors. Double-shaft also available
May be disassembled for easy maintenance



• Ringcone Series

RX Series



High torque at low output speed range with constant input rotational speed
High torque at low output speed range with constant input rotational speed
Speed Range: 0-1/1.8
Motor Capacity: 60W to 15kW
Features
Designed to withstand overload
Wider speed range starting from 0 rpm
Convenient and inexpensive electromechanical control
No oil replacement needed (20,000 hours)
Self-locking function
Constant power characteristic with excellent starting torque
Highly reliable with high efficiency and long life
Various models available

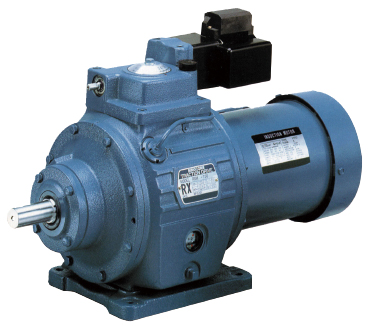

NRX Series

 For general industrial equipment requiring constant output torque
Speed Range: 0-1/3
Motor Capacity: 60W to 30kW
Features
Designed to withstand overload
Wider speed range starting from 0 rpm
Convenient and inexpensive electromechanical control
No oil replacement needed (20,000 hours)
Self-locking function
Constant power characteristic with excellent starting torque
Highly reliable with high efficiency and long life
Various models available

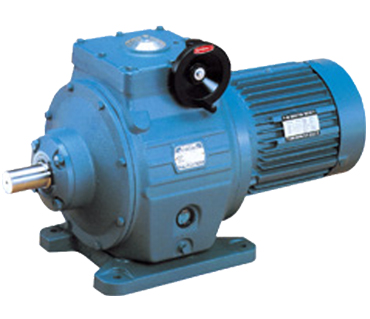

SC Series







•


  For general industrial equipment requiring mid-low speed range
  ・Speed Range: 1/16-1/4
  ・Motor Capacity: 200W to 22kW
  Features
  ・Equipped with simple, standard, precise and inexpensive electromechanical control
  ・No oil replacement needed (20,000 hours)
  ・All models are internally-equipped internally with a patented automatic pressure control mechanism
  ・Simple structure
  ・Compact and lightweight space-saving model
  ・Various models available

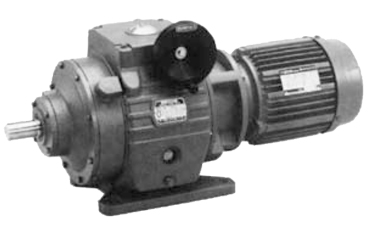

OM Series







Wider speed ratio and can be soft-started
・Speed Range: 1/90-1/6
・Motor Capacity: 200-1500W
Features
・Now standard-equipped with precise, simple and inexpensive electromechanical control
・No oil replacement needed (20,000 hours)
・All models are internally-equipped internally with a patented automatic pressure control mechanism
・Simple structure
・Compact and lightweight space-saving model
・Various models available

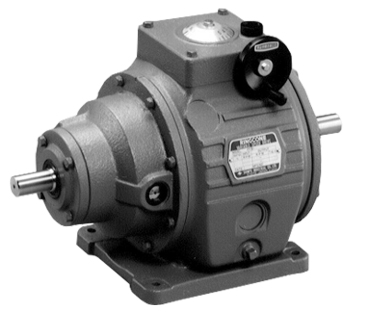

FF Series









High precision model that can change the output speed at fine increments
Speed Range: 1:1.06 (1:1.15, 1:1.26)
Features
High accuracy rotational speed control capability; perfect for machined products
High precision with a rotational fluctuation ratio of ±0.5％
High efficiency (above 90%)
Compatible with a wide-range of input rotational speeds (10-1,800 rpm)
Cost-efficient; does not require expensive high accuracy speed control devices

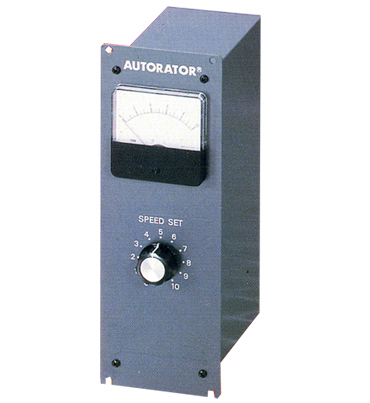

Automation LAC Series













Automatic control system for remote operation
Speed Range
・RX Series 1:100
・NRX Series 1:60
・SC Series 1:4
・O Series 1:15
Features
・Reasonably-priced for automatic control option
・Wide range of speed control
・Compatible with all Ringcone models - RX, NRX, SC, O and FF Series
・High-precision control
・Various output signal functions such as speed monitor, alarm setting etc.
・Simple setup
