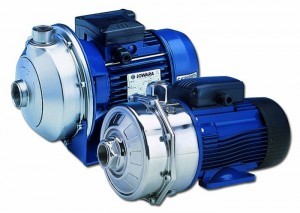

CEA Stainless steel threaded centrifugal pumps
Wide range of stainless steel pumps for domestic and industrial applications.
Available on request: “V” version with FPM seals for temperatures up to 110°C and “N” version completely made of AISI 316 stainless steel.
SPECIFICATIONS
- Delivery: up to 31 m³/h
- Head: up to 30 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 3 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 110 °C
|
 |

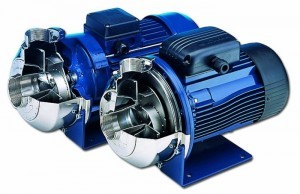

CO Threaded centrifugal pumps with open impeller
These pumps combine the advantages of an open impeller with those of the AISI 316 stainless steel construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.
SPECIFICATIONS
- Delivery: up to 54 m³/h
- Head: up to 24 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 3 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 120 °C
- Free passage: up to 20 mm
|
 |

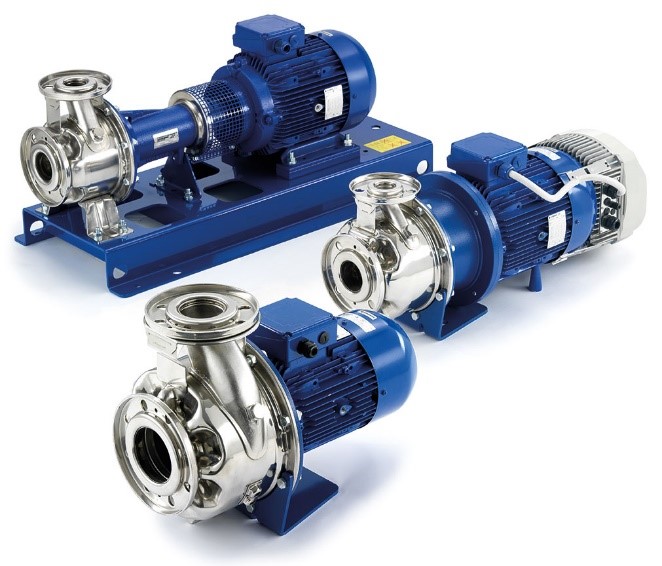

SHE SHF SHS Stainless steel 316 end suction pumps
e-SH Series
The Lowara e-SH series is a single impeller centrifugal pump made in AISI 316 stainless steel making it the right pump for moving water and aggressive liquids in a vast number of applications where high chemical resistance is needed.
HIGH EFFICIENCY AND LOW OPERATION COSTS
Newly designed high efficiency hydraulics with MEI values well above the ErP2015 level and IE3 motors set the basis for very low operation costs. Equipped with a Hydrovar variable speed pump controller, the duty is always exactly where it should be. And it pays off: reducing the speed by 50% reduces the power consumption by 85%.
EXACTLY THE RIGHT CONFIGURATION
Pump and impellers made in AISI 316 stainless steel with choice of mechanical seals/ motor options makes the e-SH is the right solution for 1000’s of liquids.
The e-SH is WRAS approved for potable water use.
SPECIFICATIONS
- Delivery: up to 240 m³/h
- Head: up to 110 m
- Power supply: three-phase 50 and 60 Hz
- Power: from 0,25 kW up to 75 kW
- Temperature of pumped liquid: from -10°C to +120°C
- Extended temperature versions from -30°C to +120°C
|
 |

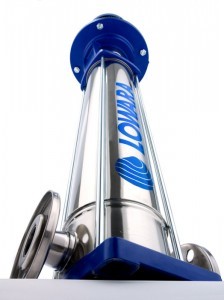

e-SV Stainless Steel Vertical Multi-stage Pumps
e-SV vertical multistage pump in stainless steel
The Lowara e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities.
DESIGN FEATURES
- Balanced mechanical seal replaceable without need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
- “O” Ring seat design to allow for simple outer sleeve dis-assembly
- Floating for self-alignment replaceable diffuser wear ring (PPS Glass filled tecnopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
- Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
- Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
- High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivized & electro-polished versions are available upon request.
Further unique features of the e-SV include the integration of performance diagnostic devices such as the i-Alert™ vibration monitor and Dry Run sensor. The i-Alert™ and the Dry Run sensor are available as an accessory for all models.
The e-SV is certified by WRAS, ACS and D.M. 174 for use with potable water.
VERSIONS
- e-SV: standard pump with IE3 motor
- e-SVE: Variable speed Smart Pump with ultra-premium efficiency IES2 drive package including a permanent magnet IE5 motor (up to 1,5 kW)
- e-SVH: Variable speed pump with Hydrovar pump controller (up to 22 kW)
SPECIFICATIONS
- Delivery: up to 160 m³/h
- Head: up to 330 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 55 kW
- Maximum operating pressure: 40 bar
- Temperature of pumped liquid: from -30°C to 120°C (high temperature version up to 180°C available)
|
 |

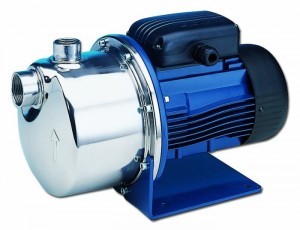

BG Self-priming centrifugal pumps
Self-priming close-coupled centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump. Suitable for use with drinking water.
BG Garden version: including handle, cable with plug and terminal box with incorporated switch.
SPECIFICATIONS
- Delivery: up to 4.20 m³/h
- Head: up to 53 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 1.10 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 40 °C
|
 |

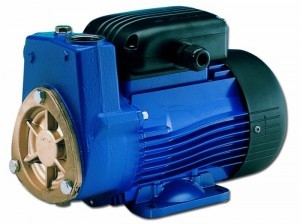

SP Self-Priming pumps with liquid side channel and star impeller
Close-coupled self-Priming pumps with liquid side channel and star impeller. Designed to remain primed even in the presence of water-dissolved gases or when the suction line is not filled with liquid. The Nickel-plated brass impeller avoids possible jamming due to oxidation.
SPECIFICATIONS
- Delivery: up to 2.75 m³/h
- Head: up to 50 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.55 kW up to 0.75 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 40 °C
|
 |

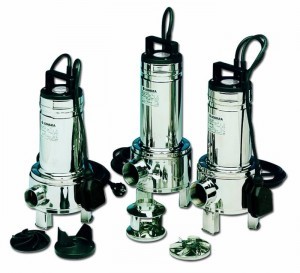

DOMO Series
DOMO series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DOMO VX).
Designed to handle suspended solids up to 50mm in diameter (35 mm for DOMO 7 and DOMO 7VX).
Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.
Versions with or without float switch are available. DRIVELUB SEAL SYSTEM.
SPECIFICATIONS
- Flow: up to 40 m³/h
- Head: up to 14.5 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.55 kW up to 1.50 kW
- Temperature of pumped liquid: to 35 °C
- Maximum immersion depth: 5 m
- Free passage: up to 50 mm
|
