EBARA
|

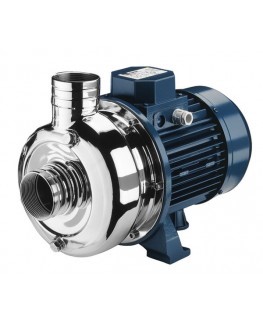

EBARA DWO series
The DWO series from Ebara come as end suction centrifugal pumps which are constructed from corrosion resistant stainless steel, with open impellers for liquids with suspended solids.
The DWO centrifugal pumps are suitable for a variety of applications, including washing vegetables, meats and fish. They are also suitable for industrial washing machines that may contain solids e.g. bottles, jars, glasses and crates, process applications such as paint plants and general dirty liquid handling.
The inlet and outlet have a female thread and male hose barbs. The pumps reach a maximum liquid temperature of 80°C, a maximum working pressure of 8 bar, and a maximum suction lift of 3 meters.
Pump Specifications
Type of liquid: Clean water
Max temp.: 90°C
Max. Working pressure: 8 bar
Impeller: Open centrifugal type
Shaft seal type: Mechanical seal
Bearing: Sealed ball bearing
Suction: G2
Discharge: G2
Materials
Casing: AISI 304
Impeller: AISI 304
Casing cover: AISI 304
Shaft seal: Ceramic/Carbon/NBR
Shaft: AISI 304 (part in contact with liquid)
Bracket: Aluminum |
 |
EBARA CDX Series
Ebara is a single impeller centrifugal electric pump with hydraulic parts in AISI 304 stainless steel and is suitable for domestic pressure boosting, brewery applications (when fitted with correct seal) treating water, cooling towers and moving clean water in general.
Technical Details
Solid hydraulic structure
Maximum working pressure: 8 bar
Maximum temperature of the liquid: -10°C to +60°C
Self-ventilated 2 pole asynchronous motor
Class of insulation: F
IP55 Protection rating
230/400V ±10%, 50Hz
Protection under user's responsibility for the three phase version
G1¼ suction connection
G1 discharge connection
Materials
Pump body, impeller, nozzle and seal housing disc in AISI 304
Shaft in AISI 303
Support and motor casing in aluminum
Mechanical sealing in:
- Ceramic/Carbon/NBR (standard)
- Ceramic/Carbon/FPM (H version )
- SiC/SiC/FPM (HS version) |
 |

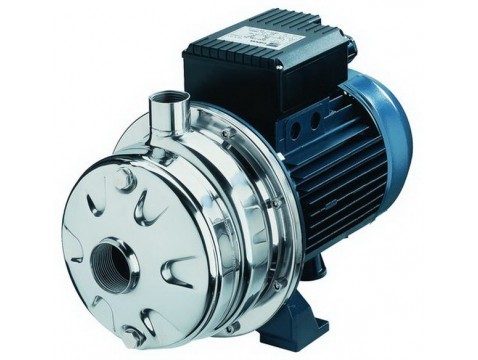

EBARA 2CDX Series
The 2CDXM, 2CDX from Ebara twin impeller centrifugal pump, with hydraulic components constructed in stainless steel AISI 304, is suitable for pressure boosting, water supply, water treatment and irrigation. It is also well suited for air conditioning systems and general water pumping including moderately aggressive liquids.
.Technical
T.E.F.C. 2 poles motor
Insulation class F
Protection degree IP55
1˜ 230V ± 10% 50Hz, 3˜ 230/400V ±10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version
Suction 1”1/2 for 2CDX200
Suction 1”1/4 for the other models
Discharge 1”
Materials
Pump body, impeller, diffuser and casing cover in AISI 304
Shaft in AISI 304
Bracket in alluminium (up to 1.5 kW included), cast iron (2.2 kW and above)
Mechanical seal in
- Ceramic/Carbon/NBR (2CDX)
- Ceramic/Carbon/FPM (2CDXH)
- SiC/SiC/FPM (2CDXHS) |
 |

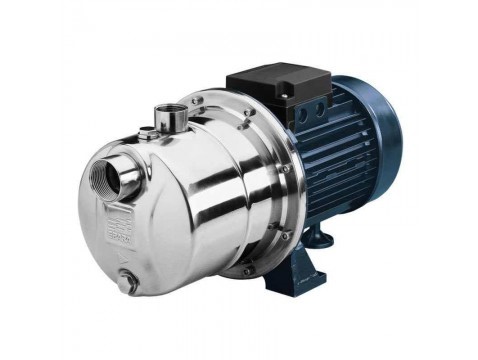

EBARA JESX, JESXM Series
The JESXM 5 self-priming pump from Ebara is suitable for the supply of drinking water, domestic pressure boosting, and small-scale garden irrigation, emptying reservoirs and swimming pools and the moving clean water in general.
Pump Technical Data
Liquid handled: Clean water
Temperature range: 5 to 45°C
Maximum working pressure: 0.6 MPa
Maximum suction depth: 8 m
Suction connection: G1"
Discharge connection: G1
Materials
Casing: AISI 304
Impeller: PPE+PS glass fiber reinforced
Casing cover: AISI 304
Shaft seal: Ceramic/Carbon/NBR
Shaft: AISI 303 (wet extension)
Ejector: PPE+PS glass fiber reinforced
Bracket: Aluminium
Diffuser: PPE+PS glass fiber reinforced
Motor support: Aluminium |
 |

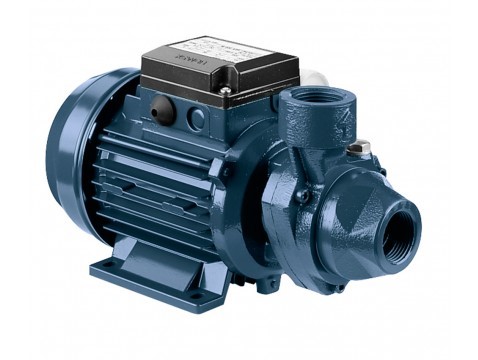

EBARA PRA Series
The silent PRA 0.50 M cast iron peripheral pump from Ebara is suitable for domestic uses, boilers power supply and booster units, as well as autoclave groups.
Technical
Maximum working pressure:
- 6 bar for PRA 0.50
Maximum temperature of the liquid: 80° C
G1 discharge connection
G1 suction connection
Asynchronous motor, 2 poles
Class of insulation F
IP44 Protection degree
230V ± 10% 50Hz single phase voltage
Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
Materials
Cast iron pump body and support
Shaft in AVZ steel for the PRA 0.50 model
Brass impeller
Mechanical seal in Carbon/Ceramic/NB |
 |

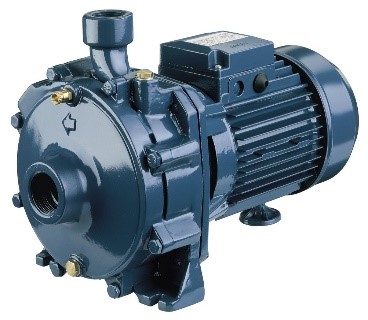

EBARA CDA Series
Ebara CDA range of Cast iron dual impeller centrifugal pumps are suited to applications including, Pressure boosting. Small-scale irrigation, Moving non-aggressive liquids, Washing plants and washing vehicles
TECHNICAL DETAILS
Available with brass impeller (CDA 0.75 M GO, CDA 1.00 M GO).
They can be inserted into machinery for industrial use
PUMP TECHNICAL DATA
Maximum working pressure:
- 6 bar for CDA 0.75 - 1.00
- 10 bar for the rest of the range
Maximum temperature of the liquid 40°C for CDA 0.75 - 1.00, 90°C for the rest of the range
G1 suction connection for CDA 0.75 - 1.00
G1¼ for CDA 1.50 - 2.00 - 3.00, G1½ per CDA 4.00 - 5.50
G1 discharge connection for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00 G1¼ for CDA 4.00 - 5.50
MATERIALS OF CONSTRUCTION
Cast iron pump casing
Mechanical seal in Carbon/Ceramic/NBR
Impeller in PPE+PS reinforced with glass fibresfor CDA 0.75 - 1.00, in brass for the rest of the range
Shaft in AISI 303 for CDA 0.75 - 1.00 -1.50 - 2.00 - 3.00, in AISI 304 for CDA 4.00 - 5.50
Bracket in aluminium for CDA 0.75 - 1.00, in cast iron for the rest of the range
Seal housing disc in AISI 304 for CDA 0.75 - 1.00, in cast iron built-in the motor bracket for the rest of the range |
 |

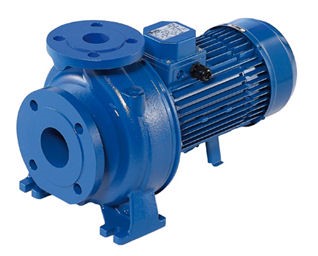

EBARA 3D Series
Ebara 3D series centrifugal pumps are manufactured from Cast Iron with Stainless Steel impellers.
Manufactured to EN733 standards.
Seal materials available include: -
Ceramic/Carbon/NBR (standard)
Ceramic/Carbon/FPM (H version)
SiC/SiC/FPM (HS version)
Tungsten Carbide/Tungsten Carbide/FPM (HW version)
SiC/Tungsten Carbide/FPM (HSW version)
Ceramic/Carbon/EPDM (E version)
They are particularly suited to applications including: -
Water and clean liquids not chemically aggressive handling
Water supply
Pressure boosting
Washing and industrial plants
Water circulation in air-conditioning systems
Irrigation and agriculture
Maximum flow = 135m3/hour
Maximum head = 70m
|
|
|
