MAX PUMPS

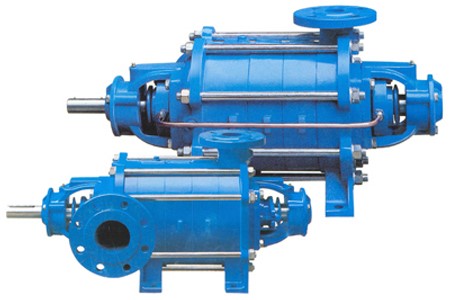

Multistage Pump
The highly versatile casted
Finally, there’s a robust and reliable pumping system for virtually any high pressure application. Max multistage ring section pump combines Xylem’s century of experience, knowhow and expertise to create a powerful and efficient solution for customers in industry, public utilities, agriculture and building services. Designed to be configured in a multitude of ways, the Max has applications limited only by your imagination.
Specifications
Flows: up to 2600 US gpm / 850 m³/h*
Heads: up to 2,000 ft / 630 m³/h*
Power:
- 2-pole: 10 hp – 1,700 hp/7.5 kW – 1,250 kW
- 4-pole: 3 hp – 220 hp / 2.2 kW – 160 kW
Maximum operating pressure: available in 63 bar and 100 bar*
Temperature of pumped liquid: -13°F to +284°F, optional 356°F / -25°C to +140°C, optional 180°C
*versions available with heads up to 3,100 ft / 950 m and flows up to 3,750 gpm / 850 m³/h. Consult factory for more information.

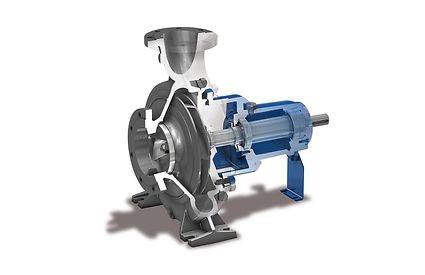

MAX PUMPS Stainless Steel Pump
- End Suction Centrifugal Pump
MAX Stainless steel pumps are featured in anti-corrosion and applicable to the corrosive liquor.
|
Design & Material |
|
|
• Bare Shaft • Direct Coupled with Electric Motor or Engine |
|
Design |
Performance and dimensions referring to the European standard BS EN733/DIN24255 |
|
Structure |
Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out |
|
DN (mm) |
32 - 150 |
|
Flange |
DIN2501 standard,ANSI B16.5 Class 150lb optional |
|
Casing |
Stainless Steel |
|
Impeller |
Stainless Steel |
|
Shaft |
Stainless Steel |
|
Shaft Seal |
Mechanical Seal |
Operating Data |
|
Flow Rate(Q) |
2-1100 m3/h |
Head(H) |
2-152m |
Speed |
1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) |
Temperature |
-10 Celsius to 105 Celsius |
Working Pressure |
1.2 MPa standard, 1.6 MPa on request |
