มอเตอร์ (Motor) |
|
|
มอเตอร์ยี่ห้อ Hascon ที่ห้างหุ้นส่วนจำกัด เอ็ม.อี.พี. คอนโทรลเป็นตัวแทนจำหน่าย
HC series are suitable for driving various kinds of machines of equipment, The output ratings are from 0.18 kW to 355 kW. The frame sizes are from 80 to 355
HC series have cast iron stator frames, end shields and terminal boxes. The feet integrally cast into the stator frames, The terminal box is mounted on the top as standard.
All motors comply with the requirements for European CE marking.
All motors are designed for high efficiency and low temperature rise giving a long economical service life.
- Motors with terminal boxes on the right side or on the left side are available. |
|
Insulation and temperature rise
The insulation system is Class F (105K) and the motors in sizes 80-355 are designed to operate with Class B (80K).
Cooling and ventilation
The standard cooling method is Totally Enclosed Fan Cooled (TEFC) in accordance with code IC411 of IEC 600034-6 Standard motors in sizes 80-315 are equipped with radial-flow plastic fans.
Standard motors in size 355 equipped with radial-flow aluminum fans.
Enclosure
The standard degrees of protections is IP55.
The IP55 enclosure means complete liquid proof and dustproof protection.
A higher degrees of protection is available.
Voltage and frequency
Standard voltages are 380V 50Hz, 400V 50Hz or 415V 50Hz, but can be wound for any single voltage in the range 200-660V at a frequency 50 or 60Hz.
The motor will operate satisfactorily with voltage variations of +/- 5% from the rated voltage.
Noise
The permitted noise levels of electrical machines are fixed in IEC60034-9 (EN60034-9). The noise level of HC motors is well below this limit values.
For detail, please refer to the performance data tables.
Vibration
Standard motors are designed to vibration class N (normal), vibration class R (reduced) and vibration class S (Special) are available on request.
Back to menu... |
-

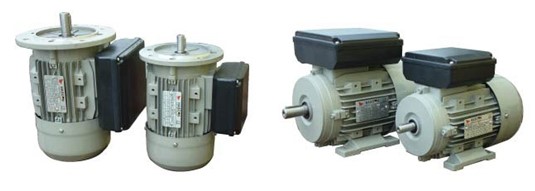

Hascon Single-Phase Dual-Capacitor Motors
HAL motors have good performance, safety and reliable operation, nice appearance and, can be maintained very conveniently, while with low noises, little vibration and at the same time of lightweight and simple construction. The competitive performance is good, the multiple of starting torque is 1.8-2.5.
These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as airs-compressors, pumps, fan, medical apparatus and instruments, and many other small machines.

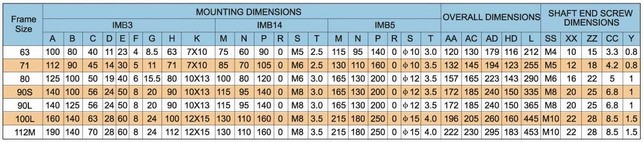

Overall & Installation Dimensions:

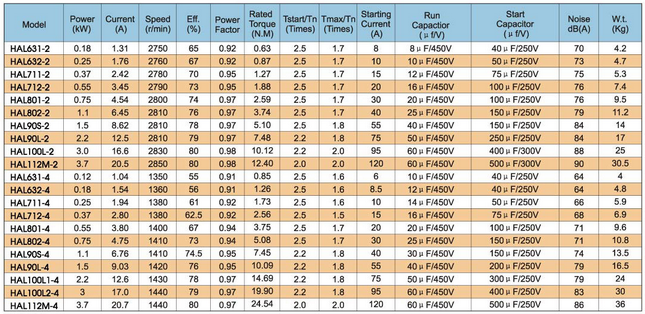

Technical Data @230V.
Back to menu...
-

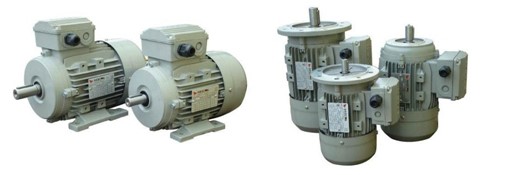

Hascon Three-Phase Asynchronous Motors
HA series aluminum housing three-phase asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard.
HA motors have good performance, safety and reliable operation. Nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time light weight and simple construction. These series motors can be used for general drive.
Back to menu...
-

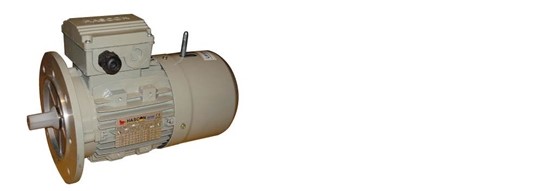

Hascon Direct Current Brake Motors
HAB series enclosed construction externally ventilated 63 ~ 160
The brake-motors of the HAB series result from coupling an asynchronous three-phase motor and an electromagnetic D.C. brake unit, due to their reliability and operating safety, as well as their quick braking time (connection & disconnection time = 5~80 milliseconds) they are suitable for a great variety of applications, as:
- Braking of loads or torques on the driving shaft.
- Braking of rotating masses to reduce any lost-time
- Braking operation to increase the set-up precision.
- Braking of machine parts, according to safety rules.
