มอเตอร์ (Motor)

SAYAMA

• SIEMENS



  Typical applications

  - Pump  - Fans  - Compressors  - Lifting equipment  - Products Industry

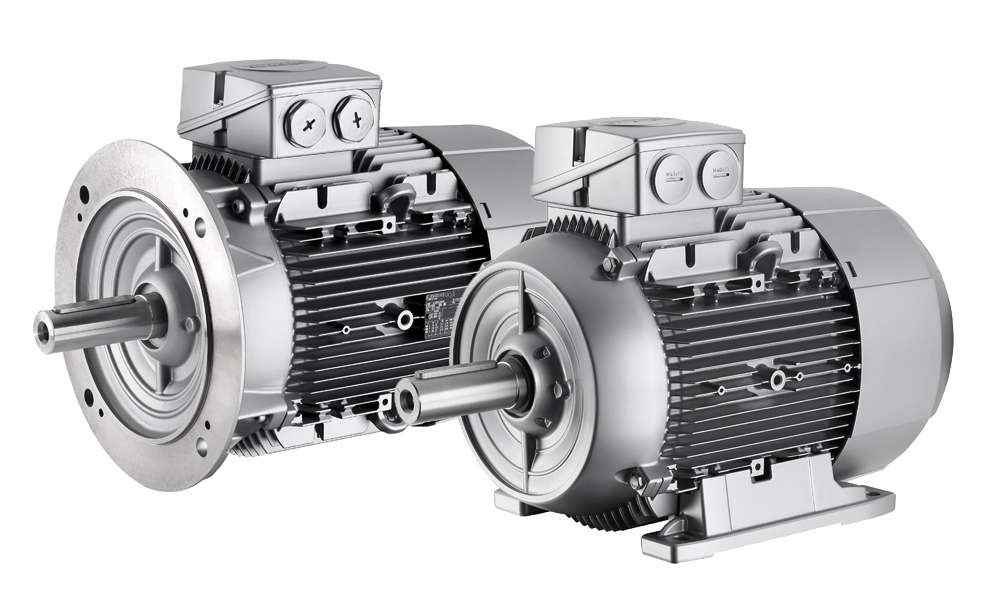

SIMOTICS Low-Voltage Motors
This technical brochure focuses on selected motor
Spectrum specifically defined for the distribution business
Covering all main standard applications and industries

Output		2 Poles / 3000 rpm			4 Poles / 1500 rpm			6 Poles / 1000 rpm
Kw	HP	Frame Size	Foot	Flange	Frame Size	Foot	Flange	Frame Size	Foot	Flange
			IM B3	B5/B14		IM B3	B5/B14		IM B3	B5/B14
0.55	0.75				80M			80M
0.75	1	80M	สอบถาม	สอบถาม	80M	สอบถาม	สอบถาม	90S	สอบถาม	สอบถาม
1.1	1.5	80M	"	"	90S	"	"	90L	"	"
1.5	2	90S	"	"	90L	"	"	100L	"	"
2.2	3	90L	"	"	100L	"	"	112M	"	"
3	4	100L	"	"	100L	"	"	132S	"	"
4	5.5	112M	"	"	112M	"	"	132M	"	"
5.5	7.5	132S	"	"	132S	"	"	132M	"	"
7.5	10	132S	"	"	132M	"	"	160M	"	"
11	15	160M	"	"	160M	"	"	160L	"	"
15	20	160M	"	"	160L	"	"	180L	"	"
18.5	25	160L	"	"	180M	"	"	200L	"	"
22	30	180M	"	"	180L	"	"	200L	"	"
30	40	200L	"	"	200L	"	"	225M	"	"
37	50	200L	"	"	225S	"	"	250M	"	"
45	60	225M	"	"	225M	"	"	280S	"	"
55	75	250M	"	"	250M	"	"	280M	"	"
75	100	280S	"	"	280S	"	"	315S
90	120	280M	"	"	280M	"	"	315M
110	150	315S	"		315S	"		315L
132	175	315M	"		315M	"		315L
160	220	315L	"		315L	"
200	250	315L	"		315L	"
